How To Make Diamond Wire Saw

How To Make A Diamond Wire Saw: Precision Cutting For Tough Materials

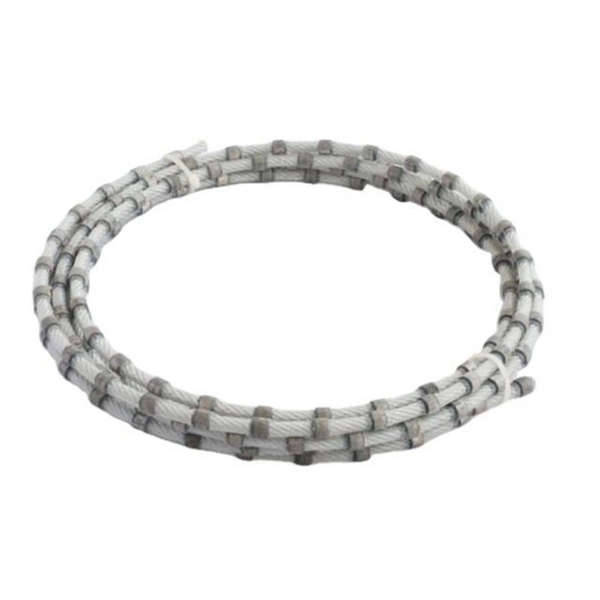

When it comes to cutting through hard materials like stone, concrete, or reinforced metals, diamond wire saws stand out as one of the most efficient tools. These saws use a thin wire embedded with diamond grains to slice through materials with precision and minimal force. Making your own diamond wire saw can be a rewarding project, especially if you’re looking for a custom solution tailored to specific needs. Here’s how you can create one.

Diamond Wire Saw Components

To start making a diamond wire saw, understanding its components is essential. The core elements include a strong, flexible wire coated with diamond abrasives, tensioning devices, and guiding pulleys. Each component plays a critical role in ensuring smooth operation and longevity of the saw. Selecting high-quality materials is crucial for achieving optimal performance.

Selecting the Right Diamond Grit

The effectiveness of a diamond wire saw largely depends on the type and size of diamond grit used. Different applications require different grit sizes; softer materials might need coarser grit, while harder substances call for finer particles. Researching the hardness of your target material and matching it with appropriate diamond grit will enhance cutting efficiency and reduce wear on the wire.

Building the Frame Structure

The frame of a diamond wire saw must be robust enough to withstand the forces involved during cutting operations. Typically constructed from sturdy metals such as steel or aluminum, the frame houses all other components including motors, pulleys, and tensioners. Ensuring that the frame is well-designed and accurately assembled is key to creating a reliable machine.

Assembling the Tensioning Mechanism

A critical aspect of any diamond wire saw is its tensioning mechanism. This system keeps the wire taut, allowing for clean, straight cuts. Commonly, hydraulic or mechanical systems are employed. Proper installation and adjustment of this mechanism are vital to prevent slippage or breakage of the wire during operation.

Installing Guide Pulleys

Guide pulleys guide the diamond wire around the workpiece, ensuring precise movement along the desired path. They must be precisely aligned and securely fixed to prevent any deviation from the cutting line. Using high-quality bearings in these pulleys ensures smooth rotation and extends the life of both the pulleys and the wire.

Testing Your Diamond Wire Saw

Before putting your newly assembled diamond wire saw into full operation, thorough testing is necessary. Begin with lighter materials to check for proper functioning of all parts. Gradually increase the difficulty level of the materials being cut to push the limits of your saw. Pay close attention to the tension, speed, and overall performance to make adjustments as needed.

Creating a diamond wire saw from scratch requires careful planning, attention to detail, and a good understanding of the underlying mechanics. With patience and persistence, however, you’ll end up with a powerful tool capable of tackling even the toughest cutting jobs.
