DIY Diamond Wire Saw: Precision Cutting for Your Projects

When it comes to cutting through tough materials like concrete, stone, or even metal, a diamond wire saw is an indispensable tool. Building your own DIY diamond wire saw can be both cost-effective and rewarding, allowing you to customize the machine to fit specific needs. This guide will walk you through the basics of creating a functional diamond wire saw, ensuring that your projects benefit from precise and efficient cuts.

Selecting the Right Components for Your Diy Diamond Wire Saw

The success of any DIY project hinges on selecting appropriate components. For a diamond wire saw, key elements include the motor, pulleys, diamond-impregnated wire, and a frame sturdy enough to handle the forces involved. Motors should offer sufficient power—typically around 3 HP or more—to drive the wire effectively. Choosing high-quality pulleys and a durable frame material, such as steel or aluminum, will ensure longevity and performance.

Constructing the Frame for Your Diy Diamond Wire Saw

A robust frame forms the backbone of your DIY diamond wire saw. This component must be able to withstand significant tension and vibration. Welding skills come in handy here, though bolted assemblies can also work well if welding isn’t an option. Ensure all joints are strong and aligned properly to maintain the integrity of the structure during operation.

Setting Up the Motor and Pulley System for Your Diy Diamond Wire Saw

Once the frame is complete, focus shifts to installing the motor and pulley system. Proper alignment is crucial here; misaligned components can lead to premature wear and reduced cutting efficiency. Use adjustable mounts for the motor to fine-tune its position relative to the pulleys. Lubricate all moving parts regularly to keep friction low and extend the life of your equipment.

Installing the Diamond Wire on Your Diy Diamond Wire Saw

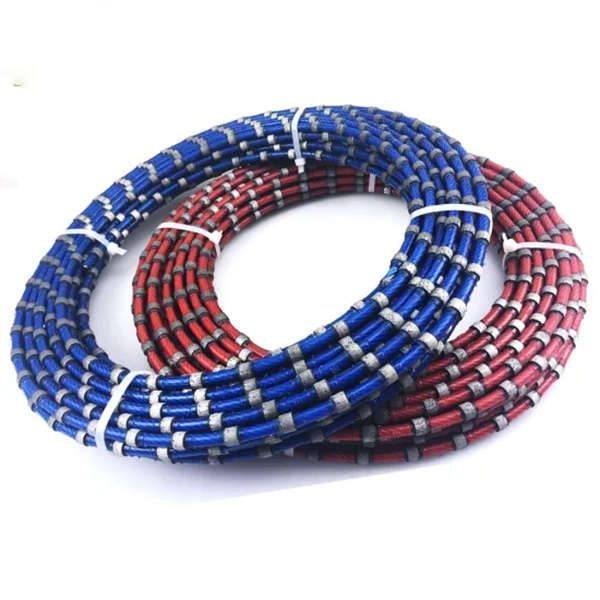

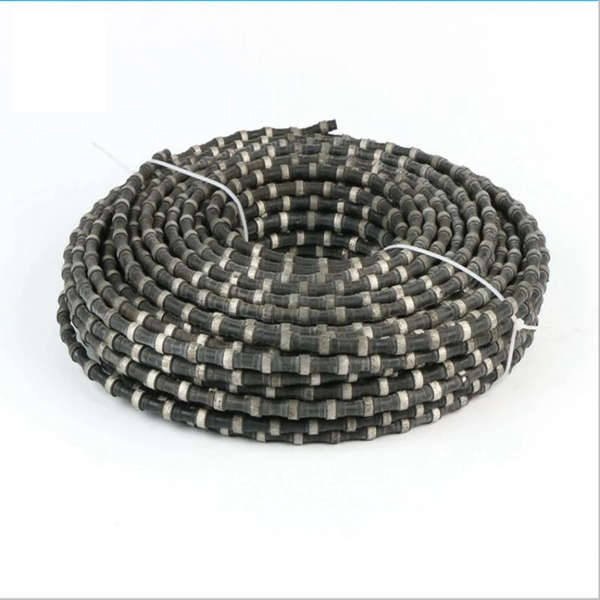

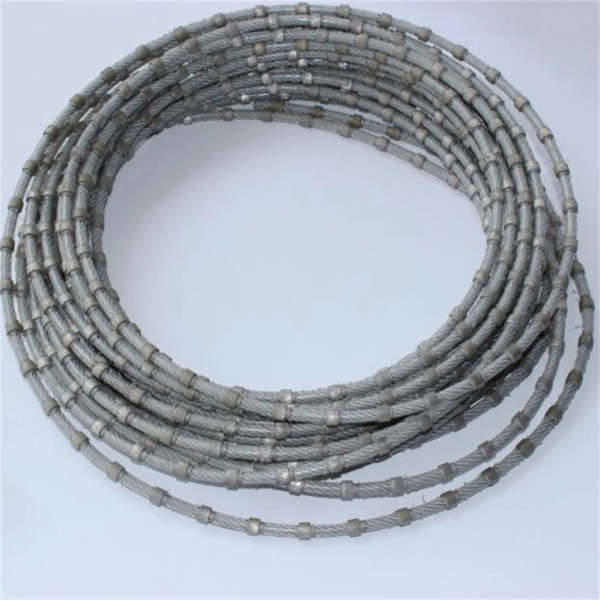

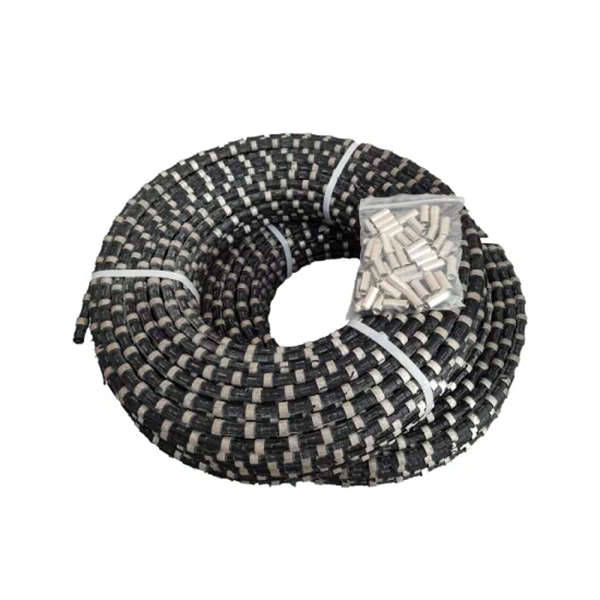

Perhaps one of the most critical steps in assembling your DIY diamond wire saw involves installing the diamond-impregnated wire. This wire must be threaded precisely between the pulleys, ensuring even tension throughout its length. Over-tightening can cause breakage, while too little tension leads to poor cutting performance. Check the manufacturer’s guidelines for recommended tension settings and follow them closely.

Testing and Adjusting Your Diy Diamond Wire Saw

Before using your new diamond wire saw on actual projects, thorough testing is essential. Start with some trial cuts on scrap material similar to what you’ll be working with regularly. Pay attention to how the saw performs, looking out for signs of overheating, excessive noise, or vibrations. Make adjustments as necessary to the tension, lubrication, or other factors until optimal performance is achieved.

In conclusion, building a DIY diamond wire saw offers a unique blend of challenge and satisfaction. With careful planning, attention to detail, and adherence to safety protocols, you can create a powerful tool capable of tackling even the toughest cutting jobs. Remember always to prioritize safety during both construction and use, and enjoy the precision and control that a custom-built diamond wire saw brings to your projects.
